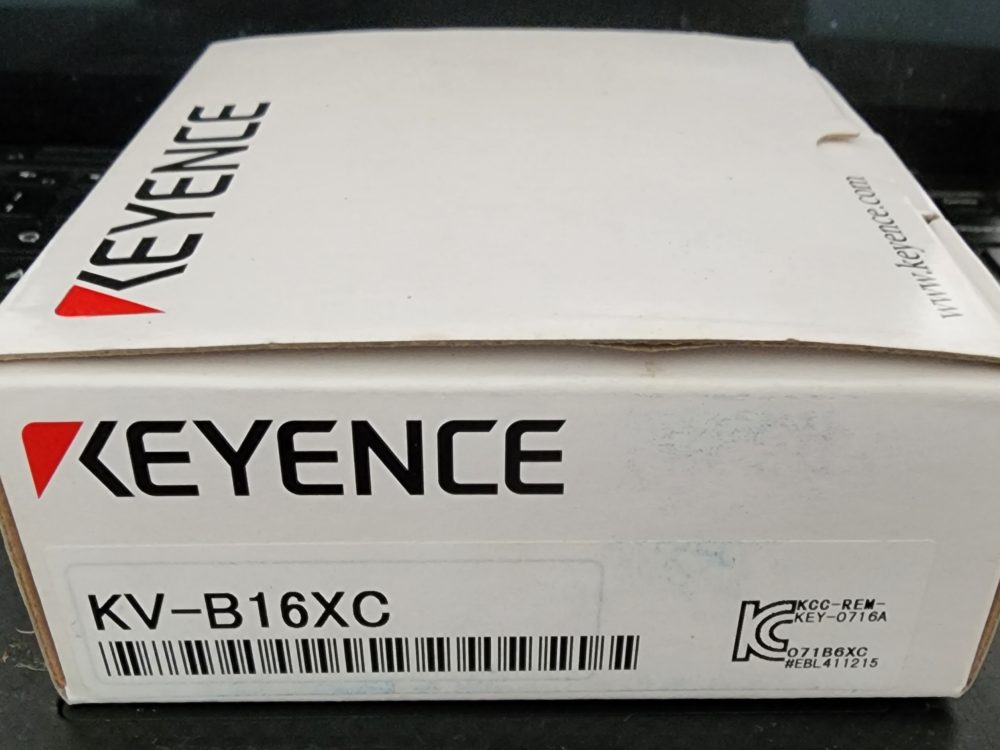

| Model | KV-B16XC | |||
| type | Input unit | |||
| External connection method | Detachable terminal block | |||
| input | Number of input points | 16 points | ||
| Input mode | DC 24 V mode, DC 5 V mode | |||
| Maximum input voltage | DC 26.4 V | |||
| Input rated voltage | DC 24 V mode: DC 24 V 5.3 mA, DC 5 V mode: DC 5 V 1 mA | |||
| Minimum ON voltage | DC 24 V mode: 19 V, DC 5 V mode: 3.5 V | |||
| Maximum OFF current | 24 V DC mode: 1.5 mA | |||
| Maximum OFF voltage | DC 5 V mode: 1.5 V | |||
| Common method | 16 points / 1 common (2 terminals) * 1 | |||
