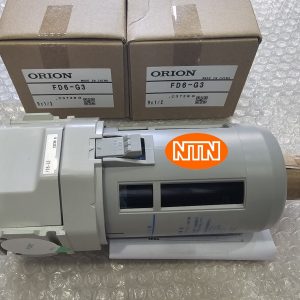

ORION FD6-G3 Bộ xả nước tự động dạng phao

CÔNG TY TNHH KỸ THUẬT NTN
Brands
Mô tả sản phẩm
  • Lưu lượng xả: 30 cm3/cycle
  • Áp suất khí nén làm việc : 0.1 ~ 1 MPa
  • Nhiệt độ môi trường làm việc: 2 ~ 60 oC
  • Inlet port size: Rc1/2
  • Drain outlet : Hose nipple
  • Kích thước: H201×D 80×W 80

Bộ xả tự động dạng phao (Float operated) do Orion sản xuất còn có :

  • FD2-G3
  • FD2-NC-G3
  • FD-5-G3
  • FD-10-A

The ORION FD6-G3 is an automatic drain trap designed by ORION Machinery Co., LTD.

  1. ModelFD6-G3
  2. Maximum Drain Capacity: 10 cm³ per cycle (at 0.69 MPa)
  3. Operating Pressure Range: 0.1 to 1 MPa
  4. Operating Temperature Range: 0°C to 60°C (equivalent to 36°F to 140°F)
  5. Connection Port Size:
    • Drain Inlet Port: Rc1/2
    • Drain Outlet Port: Rc1/2
    • Sludge Drain Port: Not specified
  6. Features:
    • Float Operated: Drains without air loss.
    • Adjustable Drain Interval: You can set the drain release interval as needed.
  7. Dimensions (H x D x W): 201 mm × 80 mm × 80 mm
  8. Weight: 0.45 kg
  9. Additional Notes:
    • The drain intake port (G3 piping connection port) can be connected from either above or from the side. Ensure that the unused port is sealed with a plug.
    • For indoor use (not exposed to water splash).
    • Includes a manual drain release (test) button.
    • In very cold climates, an anti-freeze heater is required to prevent freezing of the drain.
    • If drain piping is aggregated, install check valves to prevent pressure from other drain traps.
    • Piping (inlet and outlet) should have an inside diameter of at least 12 mm.
