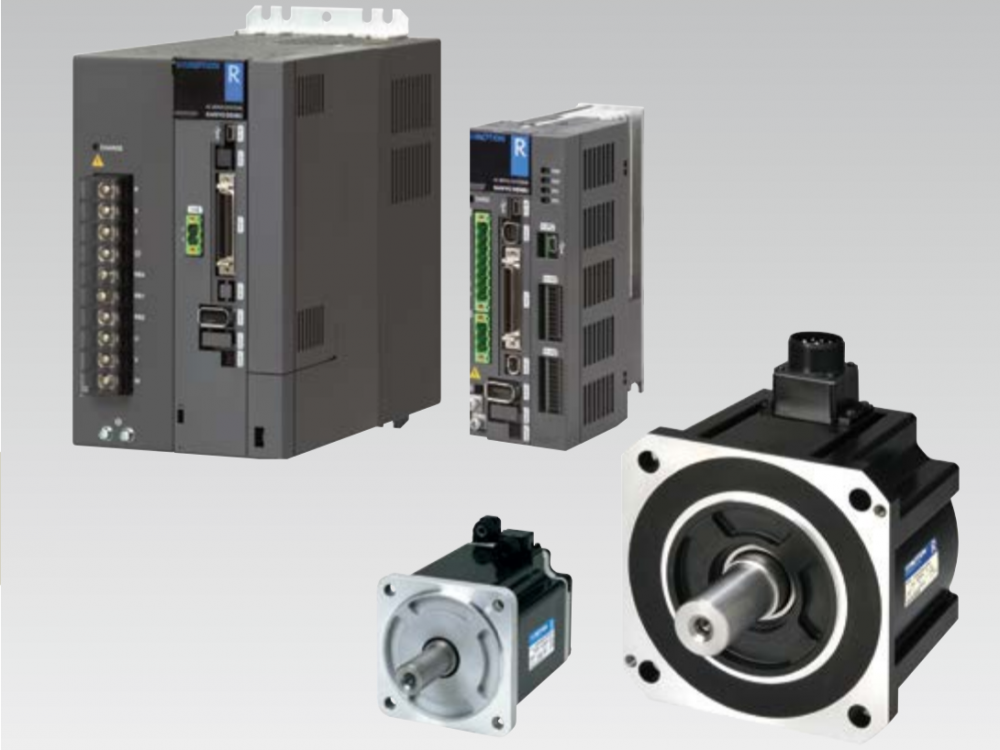

High-performance AC servo systems consisting of servo amplifiers with advanced vibration suppression and highly efficient servo motors. High resolution encoders improve trajectory accuracy and position repeatability by dramatically improving responsiveness. By providing optimal performance, this is a key component for reducing cycle time and improving production efficiency.
Specification
Servo Motor
R2 Servo Motors
R2 Servo Motor wide inertia lineup. They are ideal for use in equipment such as robots, injection molding machines, and general industrial machinery.
R1 Servo Motors
R1 Servo Motors are low inertia servo motors with low inertia and high acceleration for agile operation. These are ideal for inspection equipment.
R5 Servo Motors
R5 Servo motors are medium inertia servo motors that are ideal for smooth operation.
Servo Amplifier
More evolved AC servo amplifiers that provide improved basic performance including high responsiveness, and pursue eco-efficiency and ease of use.” title=”More evolved AC servo amplifiers that provide improved basic performance including high responsiveness, and pursue eco-efficiency and ease of use.
Batteryless Absolute Encoder Model No. HA035
The encoder has no batteries, which have limited service lives, so it can be maintenance free. It is ideal for transportation equipment and industrial equipment needing high accuracy, such as machine tools, injection molding machines, and robots.
Batteryless
Battery replacement maintenance is not needed, so manpower and time are significantly reduced.
High resolution
The number of divisions in a revolution is up to 8,388,608 (23 bit).
This enables fine equipment control.
Model List
| R1AA04005FCH03M | AC Servo Motor | □40 | 0.05 | 3000 | 0.159 | Single-turn absolute | IP65 | |||
| R1AA04005FCR03M | AC Servo Motor | □40 | 0.05 | 3000 | 0.159 | Battery-less absolute | IP65 | |||
| R1AA04005FXH03M | AC Servo Motor | □40 | 0.05 | 3000 | 0.159 | Single-turn absolute | IP65 | |||
| R1AA04005FXR03M | AC Servo Motor | □40 | 0.05 | 3000 | 0.159 | Battery-less absolute | IP65 | |||
| R1AA04010FCH03M | AC Servo Motor | □40 | 0.1 | 3000 | 0.318 | Single-turn absolute | IP65 | |||
| R1AA04010FCR03M | AC Servo Motor | □40 | 0.1 | 3000 | 0.318 | Battery-less absolute | IP65 | |||
| R1AA04010FXH03M | AC Servo Motor | □40 | 0.1 | 3000 | 0.318 | Single-turn absolute | IP65 | |||
| R1AA04010FXR03M | AC Servo Motor | □40 | 0.1 | 3000 | 0.318 | Battery-less absolute | IP65 | |||
| R1AA06020FCH03M | AC Servo Motor | □60 | 0.2 | 3000 | 0.637 | Single-turn absolute | IP65 | |||
| R1AA06020FCR03M | AC Servo Motor | □60 | 0.2 | 3000 | 0.637 | Battery-less absolute | IP65 | |||
| R1AA06020FXH03M | AC Servo Motor | □60 | 0.2 | 3000 | 0.637 | Single-turn absolute | IP65 | |||
| R1AA06020FXR03M | AC Servo Motor | □60 | 0.2 | 3000 | 0.637 | Battery-less absolute | IP65 | |||
| R1AA06040FCH03M | AC Servo Motor | □60 | 0.4 | 3000 | 1.27 | Single-turn absolute | IP65 | |||
| R1AA06040FCR03M | AC Servo Motor | □60 | 0.4 | 3000 | 1.27 | Battery-less absolute | IP65 | |||
| R1AA06040FXH03M | AC Servo Motor | □60 | 0.4 | 3000 | 1.27 | Single-turn absolute | IP65 | |||
| R1AA06040FXR03M | AC Servo Motor | □60 | 0.4 | 3000 | 1.27 | Battery-less absolute | IP65 | |||
| R1AA08075FCH03M | AC Servo Motor | □80 | 0.75 | 3000 | 2.39 | Single-turn absolute | IP65 | |||
| R1AA08075FCR03M | AC Servo Motor | □80 | 0.75 | 3000 | 2.39 | Battery-less absolute | IP65 | |||
| R1AA08075FXH03M | AC Servo Motor | □80 | 0.75 | 3000 | 2.39 | Single-turn absolute | IP65 | |||
| R1AA08075FXR03M | AC Servo Motor | □80 | 0.75 | 3000 | 2.39 | Battery-less absolute | IP65 |
Model no. | Product name | Motor flange size[mm] | Rated output[kW] | Rated speed[min-1] | Rated torque[N・m] | Encoder type | Protection rating | Amplifier capacity[A] | Main circuit power supply[V] | Interface |
|---|---|---|---|---|---|---|---|---|---|---|
| R1AA04005FCH03M | AC Servo Motor | □40 | 0.05 | 3000 | 0.159 | Single-turn absolute | IP65 | |||
| R1AA04005FCR03M | AC Servo Motor | □40 | 0.05 | 3000 | 0.159 | Battery-less absolute | IP65 | |||
| R1AA04005FXH03M | AC Servo Motor | □40 | 0.05 | 3000 | 0.159 | Single-turn absolute | IP65 | |||
| R1AA04005FXR03M | AC Servo Motor | □40 | 0.05 | 3000 | 0.159 | Battery-less absolute | IP65 | |||
| R1AA04010FCH03M | AC Servo Motor | □40 | 0.1 | 3000 | 0.318 | Single-turn absolute | IP65 | |||
| R1AA04010FCR03M | AC Servo Motor | □40 | 0.1 | 3000 | 0.318 | Battery-less absolute | IP65 | |||
| R1AA04010FXH03M | AC Servo Motor | □40 | 0.1 | 3000 | 0.318 | Single-turn absolute | IP65 | |||
| R1AA04010FXR03M | AC Servo Motor | □40 | 0.1 | 3000 | 0.318 | Battery-less absolute | IP65 | |||
| R1AA06020FCH03M | AC Servo Motor | □60 | 0.2 | 3000 | 0.637 | Single-turn absolute | IP65 | |||
| R1AA06020FCR03M | AC Servo Motor | □60 | 0.2 | 3000 | 0.637 | Battery-less absolute | IP65 | |||
| R1AA06020FXH03M | AC Servo Motor | □60 | 0.2 | 3000 | 0.637 | Single-turn absolute | IP65 | |||
| R1AA06020FXR03M | AC Servo Motor | □60 | 0.2 | 3000 | 0.637 | Battery-less absolute | IP65 | |||
| R1AA06040FCH03M | AC Servo Motor | □60 | 0.4 | 3000 | 1.27 | Single-turn absolute | IP65 | |||
| R1AA06040FCR03M | AC Servo Motor | □60 | 0.4 | 3000 | 1.27 | Battery-less absolute | IP65 | |||
| R1AA06040FXH03M | AC Servo Motor | □60 | 0.4 | 3000 | 1.27 | Single-turn absolute | IP65 | |||
| R1AA06040FXR03M | AC Servo Motor | □60 | 0.4 | 3000 | 1.27 | Battery-less absolute | IP65 | |||
| R1AA08075FCH03M | AC Servo Motor | □80 | 0.75 | 3000 | 2.39 | Single-turn absolute | IP65 | |||
| R1AA08075FCR03M | AC Servo Motor | □80 | 0.75 | 3000 | 2.39 | Battery-less absolute | IP65 | |||
| R1AA08075FXH03M | AC Servo Motor | □80 | 0.75 | 3000 | 2.39 | Single-turn absolute | IP65 | |||
| R1AA08075FXR03M | AC Servo Motor | □80 | 0.75 | 3000 | 2.39 |
