HYBRID TOYORON Hose is a pressure resistant hose for pressure feed made of soft PVC that’s resistant against bending and collapse.

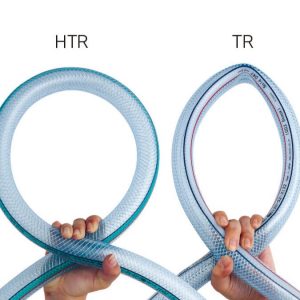

HYBRID TOYORON Hose is more resistant to bending and collapse than ordinary blade hoses, enables compact piping, prevents production problems due to insufficient flow or stopped flow, and helps improve productivity and save energy.
In addition to hoses, various dedicated couplings are available for higher safety and productivity.
Specification
| Use | ： | For factory equipment hoses and various equipment |
|---|---|---|
| Fluid | ： | Water (Non-drinkable)PowdersOils (Mineral)Oils (Animal and Vegetables)ChemicalsAir |
| Function | ： |
|
| Certifications | ： | RoHS2 Compliant |
| Method | ： | Primary Material: Vinyl Materials: Specialized PET resin / Polyester thread Diameter: 9mm~25mm Temperature Range: -5℃ ~60℃ |
Model List
| Product Code | Inner dia. x Outer dia. (mm) | Use pressure 23℃ (MPa) | Use pressure 60℃ (MPa) | Standard weight (kg/roll) | Standard length (m) | Minimum bend radius (mm) |
|---|---|---|---|---|---|---|
| HTR-9 | 9×15 | 0 to 1.5 | 0 to 1.0 | 15 | 100 | 40 |
| HTR-12 | 12×18 | 0 to 1.2 | 0 to 0.8 | 19 | 100 | 50 |
| HTR-15 | 15×22 | 0 to 1.0 | 0 to 0.8 | 25 | 100 | 70 |
| HTR-19 | 19×26 | 0 to 1.0 | 0～0.6 | 16 | 50 | 90 |
| HTR-25 | 25×33 | 0~1.0 | 0 to 0.6 | 24 | 50 | 120 |
