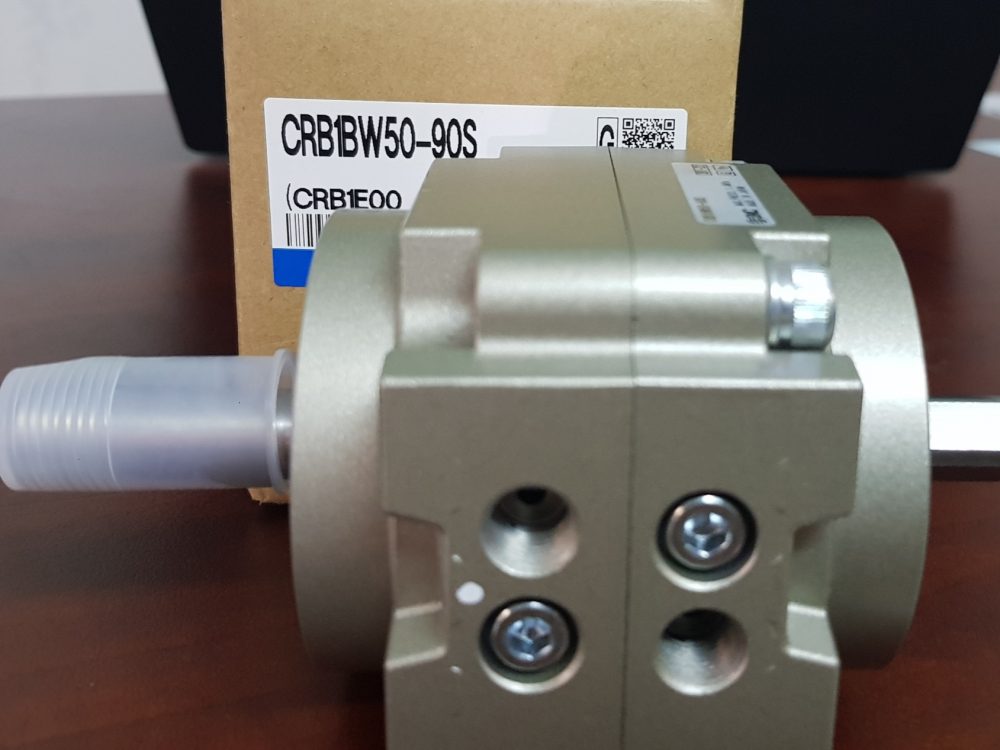

| ype | Rotary Actuator Both Sides Shaft Outputs | Main Body Shape | Round Shape |
|---|---|---|---|
| Oscillation Angle A | [90°] 90° | Torque(N･m) | 10 ~ Less than 20 |
| Operation Method | Single Vane | Environment, Applications | Standard |
| Rigidity, Accuracy | Standard | Tube Nominal Dia. | 50 |
| Valves | N/A | Allowable Kinetic Energy(J) | 0.005 to Less Than 0.01 |
| Allowable Kinetic Energy(J) | 0.082 | Operating Pressure Range(MPa) | 0.15～1 |
