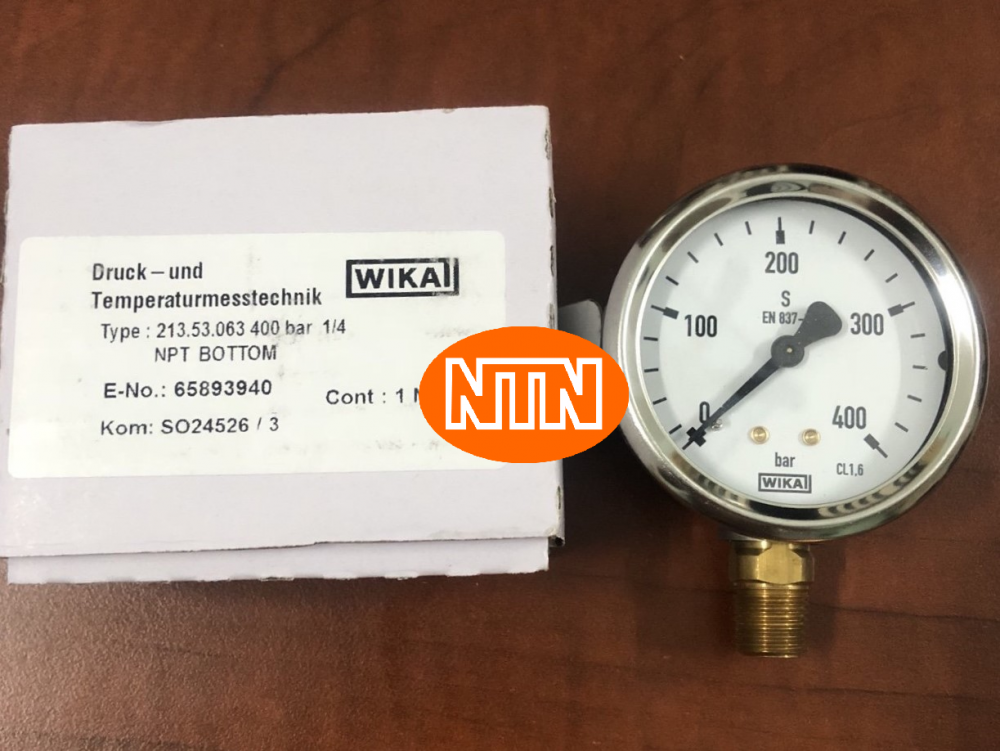

Đồng hồ áp suất Wika 213.53.063 400 bar 1/4 NPT lower mount
- Dòng Wika 213.53
- Đường kính mặt đồng hồ NS 63mm
- Dãy đo : 0 ~ 400 bar
- Ren đáy 1/4″ NPT
Specification
- Bourdon tube pressure gauges, liquid filled,
stainless steel case, model 213.53.050/063
Model: 213.53.063
Specifications according to data sheet: PM 02.12
Measuring system: copper alloy
Case: stainless steel 1.4301
Case: Crimp ring case (version 53)
Nominal size: 063 mm
Scale range: 0…400 bar
Process connection: 1/4 NPT
Connector location: lower mount
Accuracy class: class 1.6
Case filling fluid: glycerine
Window: plastic, clear
